Download the model files for this tutorial from the following link:
https://www.magnetics.de/downloads/Tutorials/5.FullWave/5.5MicrostripAntenna.zip

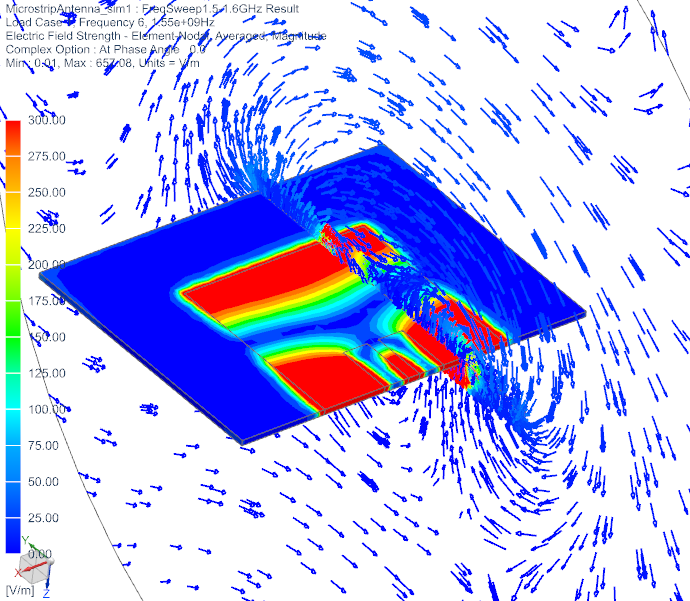

The following figure shows the electric field pattern at frequency 1.55 GHz.

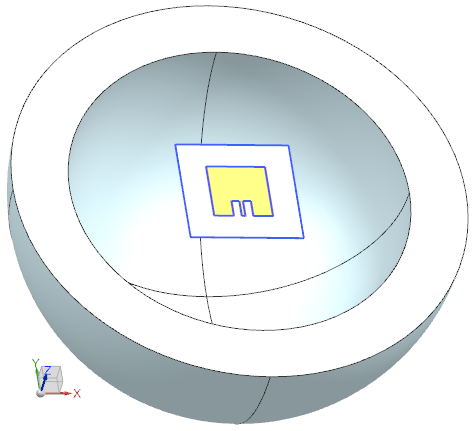

This example shows a already complete model of a microstrip patch
antenna that is ready to solve. The model setup is very similar to the
’Dipole Antenna’ shown in a prior chapter. The interested reader can
check the model features and gain insights.
Download the model files for this tutorial from the following
link:
https://www.magnetics.de/downloads/Tutorials/5.FullWave/5.5MicrostripAntenna.zip
The following figure shows the electric field pattern at frequency 1.55
GHz.

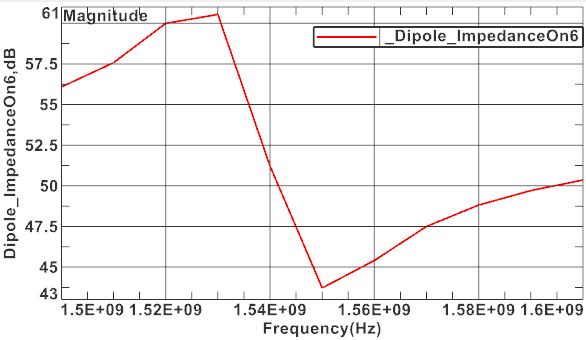

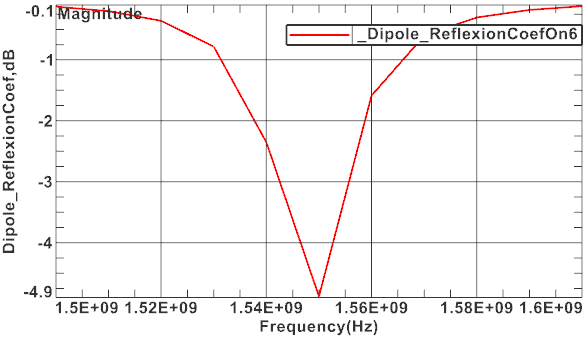

Antenna impedance and reflection coefficients over frequency, as they
result from the frequency sweep solution, are shown below.
