Download the model files for this tutorial from the following link:
https://www.magnetics.de/downloads/Tutorials/5.FullWave/5.7VivaldiAntenna.zip

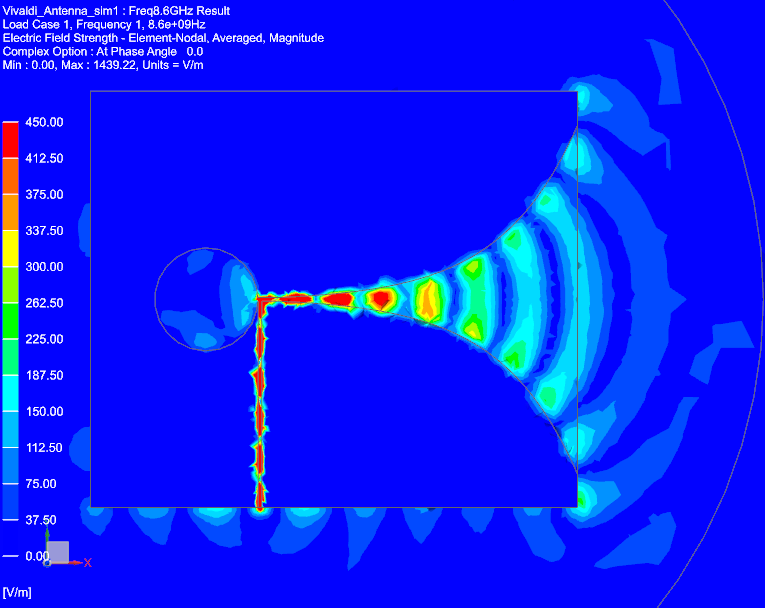

The following figure shows the electric field pattern at frequency 8.6 GHz.

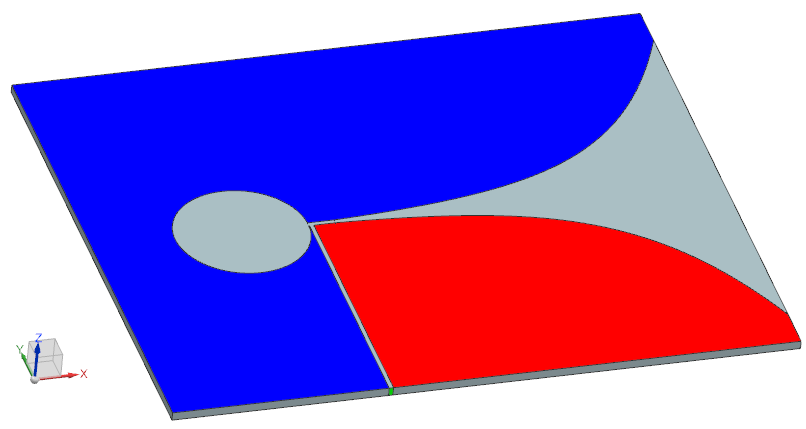

This example shows a already complete model of a Vivaldi antenna that
is ready to solve. The model setup is very similar to the ’Dipole
Antenna’ shown in a prior chapter. The interested reader can check the
model features and gain insights.
Download the model files for this tutorial from the following
link:
https://www.magnetics.de/downloads/Tutorials/5.FullWave/5.7VivaldiAntenna.zip
The following figure shows the electric field pattern at frequency 8.6
GHz.
Antenna impedance and reflection coefficients over frequency, as they result from a frequency sweep solution, are shown below.
